Power Conditioning Solutions

• Ambient Temperature
• 0C to 50C

• Control System
• Servo Motor Controlled

• Current
• Other, Up to 345A (depends on KVA rating)

• Current Type
• AC

• Degree of Protection
• IP 21

• Design
• Air Cooled Cabinet

• Dimension (L*W*H)
• As per model (customized)

• Display
• Other, Digital/Analog Meter

• Efficiency
• Over 98%

• Frequency (MHz)
• 50 Hz

• Input Voltage
• 170V-270V / 140V-280V / 300V-470V (customized)

• Insulation Resistance
• Greater than 2 M

• Output Current
• As per capacity

• Output Voltage
• 230V / 415V (customized as per requirement)

• Phase
• Other, Single Phase / Three Phase

• Product Type

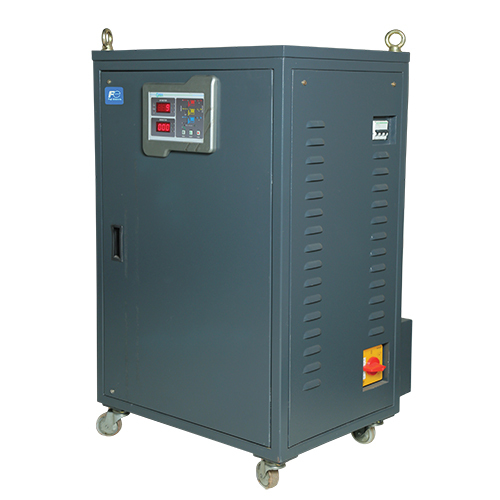

• Servo Control Voltage Stabilizer - Air Cooled

• Rated Power
• Up to 250 KVA

• Usage
• Other, Industrial, Commercial, Residential

• Voltage Protection
• Over/Under Voltage Protection

• Waveform Distortion
• Negligible

• Weight
• Varies by model

• Ambient Temperature
• -10C to +45C

• Control System
• Manual

• Current
• Other, 21.7 A

• Current Type
• AC

• Degree of Protection
• IP20

• Design
• Core and Coil Type

• Dimension (L*W*H)
• 420 x 210 x 350 mm

• Efficiency
• >98%

• Frequency (MHz)
• 50/60 Hz

• Input Voltage
• 415 V AC

• Insulation Resistance
• >1000 M at 500V DC

• Output Current
• 21.7 A

• Output Voltage
• 230 V AC

• Phase
• Three Phase

• Product Type
• Isolation Transformer

• Rated Power
• 5 kVA

• Usage
• Other, Industrial & Commercial Applications

• Voltage Protection
• Over/Under Voltage Protection

• Waveform Distortion
• <1%

• Weight
• 55 kg

• Ambient Temperature
• 0C to 50C

• Control System
• Manual / Automatic

• Current
• Other, As per rating

• Current Type
• AC

• Degree of Protection
• IP 20 / IP 23

• Design
• Copper Wound Double Wound

• Dimension (L*W*H)
• Customized as per requirement

• Display
• Other, No Display

• Efficiency
• Above 95%

• Frequency (MHz)
• 50 / 60 Hz

• Input Voltage
• 230V / 415V AC

• Insulation Resistance
• >= 1000 Mega Ohm

• Output Current
• As per output power

• Output Voltage
• 230V AC

• Phase
• Other, Single Phase / Three Phase

• Product Type

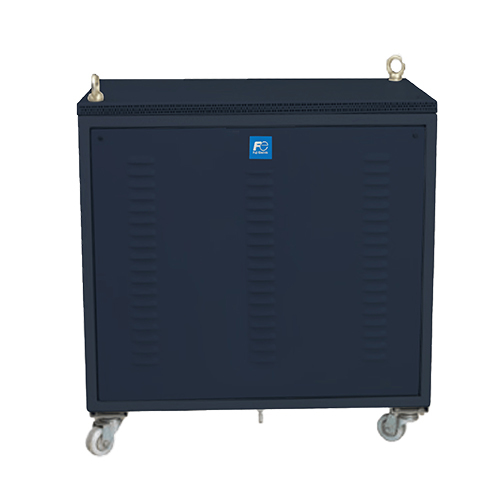

• Ultra Isolation Transformer

• Rated Power
• Up to 200 kVA

• Usage
• Other, Sensitive Electronic Equipment Protection

• Voltage Protection
• Built-in Over Voltage & Under Voltage Protection

• Waveform Distortion
• Negligible / < 1%

• Weight
• As per kVA rating

• Ambient Temperature
• Up to 50C

• Control System
• Manual / Automatic (optional)

• Current
• Other, Rated as per kVA output

• Current Type
• AC

• Degree of Protection
• IP23 / IP54

• Design
• Copper Wound, Dry Type

• Dimension (L*W*H)
• Customizable as per rating

• Display
• Other, Optional Digital Meter

• Efficiency
• >= 95%

• Frequency (MHz)
• 50 Hz / 60 Hz

• Input Voltage
• 415 V / 230 V

• Insulation Resistance
• >= 1000 M

• Output Current
• Varies as per selection

• Output Voltage
• 415 V / 230 V

• Phase
• Other, Three Phase / Single Phase

• Product Type
• K Rated Transformer

• Rated Power
• 5 kVA to 500 kVA

• Usage
• Other, Data Centers, Industrial Loads, Commercial Buildings

• Voltage Protection
• Inbuilt Overload & Short Circuit Protection

• Waveform Distortion
• Low (Designed for non-linear loads)

• Weight
• Depends on kVA rating

• Ambient Temperature
• 0C to 45 Celsius (oC)

• Control System
• Digital Microprocessor Based

• Current
• Other, 13 Amp (Approx)

• Current Type
• AC

• Degree of Protection
• IP20

• Design
• Floor Mounted

• Dimension (L*W*H)
• 380 x 220 x 280 Millimeter (mm)

• Display
• Other

• Efficiency
• >95%

• Frequency (MHz)
• 50 Hertz (HZ)

• Input Voltage
• 170V-270V AC Volt (V)

• Insulation Resistance
• >= 5 Mega Ohms

• Output Current
• 13 (Approx) Ampere (amp)

• Output Voltage
• 220V/230V AC Volt (V)

• Phase
• Single Phase

• Product Type
• Servo Controlled Voltage Stabilizer

• Rated Power
• 3 kVA

• Usage
• Other, Residential, Commercial

• Voltage Protection
• High/Low Cut-Off

• Waveform Distortion
• Nil

• Weight
• 18 Kilograms (kg)

• Ambient Temperature
• 0C to 50C

• Control System
• Automatic Servo Motor Control

• Current
• Other, Up to 700A (as per model)

• Current Type
• AC

• Degree of Protection
• IP21/IP23

• Design
• Floor Mounted, Oil Cooled enclosure

• Dimension (L*W*H)
• Custom as per capacity (e.g., 950x750x1250 mm for 50 kVA)

• Display
• Other, Analog/LED Digital Meters

• Efficiency
• >95%

• Frequency (MHz)
• 50 Hz

• Input Voltage
• 170V to 270V (Single Phase), 300V to 470V (Three Phase)

• Insulation Resistance
• >2 M

• Output Current
• Dependent on load/current rating

• Output Voltage
• 230V / 415V AC

• Phase
• Other, Single Phase/Three Phase

• Product Type
• Servo Control Voltage Stabilizer - Oil Cooled

• Rated Power
• 5 kVA to 500 kVA (as per model)

• Usage
• Other, Industrial, Hospitals, Laboratories, Commercial units

• Voltage Protection
• Over/Under Voltage Cutoff

• Waveform Distortion
• Negligible

• Weight
• Varies by model (e.g., ~250 kg for 50 kVA)

• Ambient Temperature
• -10C to +45C

• Control System
• DSP based control

• Current
• Other, 50A/100A/150A/200A (depends on model)

• Current Type
• AC

• Degree of Protection
• IP20 / IP21

• Design
• Compact, modular

• Dimension (L*W*H)
• 550 mm * 600 mm * 200 mm (varies with model)

• Display
• Other, LCD, digital

• Efficiency
• >=97%

• Frequency (MHz)
• 50/60 Hz

• Input Voltage
• 415 V AC 20%

• Insulation Resistance
• >=1000 M

• Output Current
• 50A to 200A (depending on model)

• Output Voltage
• 415 V AC

• Phase
• Three Phase

• Product Type
• Active Harmonic Filter (AHF)

• Rated Power
• Depends on model (typically 50A, 100A, 150A, 200A)

• Usage
• Other, Industrial power quality improvement

• Voltage Protection
• Over/under voltage protection

• Waveform Distortion
• < 5% (THDi)

• Weight
• 60 kg (approx., varies as per model)
